What is the P-F Curve?

In the world of asset management and maintenance, the P-F Curve is a powerful tool that helps companies predict the failure of their equipment and machinery before it impacts their operations. The P-F Curve, short for the “Potential Failure to Functional Failure” curve, provides insight into the relationship between the degradation of an asset and its eventual breakdown. By understanding and adopting the P-F Curve, organizations can optimize their maintenance strategies, reduce downtime, and prevent costly unforeseen failures.

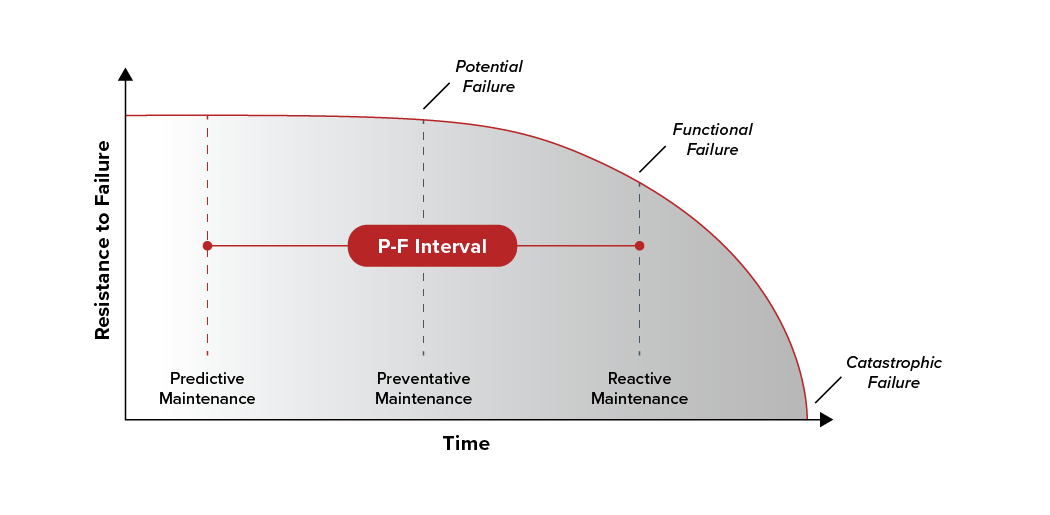

How to Read the P-F Curve

To effectively utilize the P-F Curve, you need to understand how to read and interpret it. The curve represents the lifecycle of an asset from the point where a potential failure (P) is detected to when the equipment reaches functional failure (F). It visually illustrates the time that spans from when a failure starts developing to when the equipment stops functioning as intended.

The P-F Interval

The P-F Interval is the space between potential failure (P) and functional failure (F). This is the critical window where maintenance activities can be performed to prevent a functional failure from occurring. The earlier you can detect an asset’s degradation, the longer the P-F Interval, giving you more time to act and avoid expensive downtime. The longer the P-F Interval, the more effectively you can plan your maintenance.

How to Expand the P-F Interval

Expanding the P-F Interval is a main objective in modern asset management. The longer the time between potential failure and functional failure, the more opportunities there are for intervention before a breakdown occurs. Techniques such as predictive maintenance, condition monitoring, and regular inspections can help detect initial signs of degradation, giving organizations the time needed to take corrective actions and extend the P-F Interval.

Point P: Potential Failure

Point P on the P-F Curve represents the moment when a defect or failure mode begins to develop in an asset, but it hasn’t yet affected its functionality. This is the first sign of wear or degradation, and it's vital that maintenance teams detect it ASAP. Detecting Point P before the issue worsens can give you the upper hand in stopping a functional failure, reducing the possibility of downtime, and extending the life of the equipment.

Point F: Functional Failure

Point F is the point at which the asset can no longer perform its intended function. This is the point of critical failure where the machinery ceases to operate as it should, potentially causing downtime, lost productivity, and expensive repairs. By identifying Point P and intervening early in the P-F Interval, maintenance teams can prevent the equipment from reaching Point F and sidestep significant disruptions.

How to Create the P-F Curve

Creating a P-F Curve begins with understanding the specific characteristics and failure modes of the equipment you're monitoring. It requires historical data, failure records, and maintenance insights to plot when possible failure is likely to occur and when functional failure will follow.

To create an accurate P-F Curve, you need to assess your assets regularly with the help of condition monitoring technologies, such as vibration sensors, temperature readings, and other predictive techniques. Once you have the necessary data, you can map out the timeline from Point P to Point F, allowing you to implement a proactive maintenance strategy that can prevent unexpected failures.

How to Use the P-F Curve

The P-F Curve isn’t just a theoretical concept—it’s an actionable tool for improving asset management. There are several ways to use the P-F Curve in day-to-day operations to improve maintenance strategies and reduce unplanned downtime.

Condition-Based Monitoring & P-F Curves

Condition-based monitoring (CBM) relies on real-time data from sensors and diagnostics to monitor the health of assets continuously. By integrating CBM with the P-F Curve, you can track the asset's condition from the moment of potential failure to when it reaches functional failure. This allows you to schedule maintenance activities based on the actual condition of the equipment rather than on time intervals alone.

Preventive Maintenance & P-F Curves

Preventive maintenance (PM) is based on performing routine maintenance at scheduled intervals to avoid failures before they occur. By combining PM with the P-F Curve, organizations can use the data to determine optimal maintenance windows that fall before the potential failure point. This enables more precise, cost-effective maintenance schedules that lower the potential for operational disruptions.

Vibration Monitoring & P-F Curves

Vibration monitoring is one of the most common and effective techniques for detecting early signs of failure in rotating machinery. By integrating vibration monitoring with the P-F Curve, maintenance teams can detect the earliest signs of wear or defect that signal Point P. Regular vibration analysis can help extend the P-F Interval, allowing for early intervention before the asset reaches Point F and minimizes the chances of a failure.

By making room for the P-F Curve into your asset management and maintenance strategies and practices, you can proactively manage equipment lifecycles, lower unexpected downtime, and strengthen operational efficiency. This approach offers a clear path from detecting early signs of potential failure to ensuring your assets perform optimally on a continuous basis.
